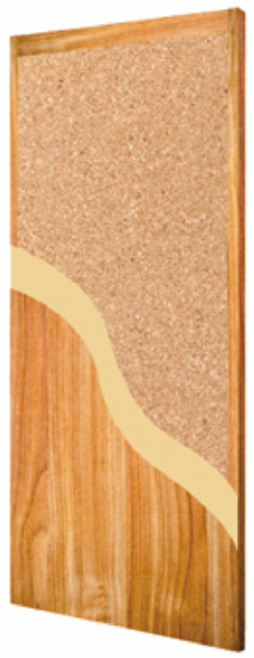

Wooden Fire Door 1

Specifications:

5-Ply Construction

Lay Up Method:

Bonded

Thickness:

1 3/8" and 13/4"

Stile & Rails:

2" Stile on both sides, 2" Top & Bottom Rails on 30/68,30/70,36/70,40/70 doors

2" Stile on both sides, 6" Top & Bottom Rails on 30/80,30/90.40/80 doors

Core:

36-38 lb Extra Heavy Duty PBC,ANSI A208.1 Grade LD-2

Machining:

To specification

Fire Rating:

UL Listed, Positive Pressure Tested:20-Minute Rated (13"4" only)

Faces:

All Hardwood Veneer species Raw & Pre-Finished

Primed Medium Density Overlay(MDO)

Crossband:

1/8" High Density Fiberboard (HDF)

Adhesive:

Type-1PVA(Water-Based)

Lites frame:

Lites available with glazing;UL Listed

6" Minimum around all edges

Louvers:

Up to 24" x 24";Louver(s) allowed in doors with lite openings,exit devices or smoke control doors

Neutral Pressure:

Singles and Pairs require a Category“B”Edge Seal

Positive Pressure

Singles and Pairs require a Category "B"

SG Fire Intumescent/Smoke Seal

Acoustical Rating:

38 STC Operable

Warranty:

Lifetime Warranty

Applications:

For Architectural Use

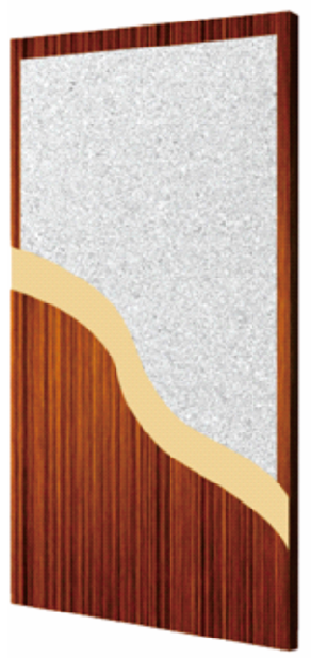

Wooden Fire Door 2

Specifications:

5-Ply Construction

Lay Up Method:

Bonded

Thickness:

1 3/4" Olny

Stile & Rails:

2" Stile on both sides, 4" Top & Bottom Rails on 30/68,30/70,36/70,40/70 doors

2" Stile on both sides, 6" Top & Bottom Rails on 30/80,30/90.40/80 doors

Core:

Mineral Core

Machining:

To specification

Fire Rating:

Ul Listed,Positive Pressure Tested: 45,60,90-Minute Rated

Faces:

High Pressure Plastic Laminated(P-LAM);

Standard Original Formica, Pionite, Nevamar,Wilsonart,and equivalent laminate faces available at factory

Crossband:

1/8" High Density Fiberboard (HDF)

Adhesive:

Type-1PVA(Water-Based)

Lites frame:

Lites available with glazing; UL Listed

6" Minimum around all edges

Area of lites cutout must not exceed half of total area of doors

Louvers:

Up to 24"x24";Louver(s) allowed in doors with lite openings,exit devices or smoke control doors

Neutral Pressure:

Singles and Pairs require a Category“B”Edge Seal

Positive Pressure

Singles and Pairs require a Category "B"

SG Fire Intumescent/Smoke Seal

Acoustical Rating:

38 STC Operable

Warranty:

Lifetime Warranty

Applications:

For Architectural and Light Commercial Use

Standards:

Meets or exceeds industry standards of WDMAI.S.1-A,WI Section 12.AWI Section 1300.

Standards:

Meets or exceeds industry standards of WDMAI.S.1-A,WI Section 12,AWI Section 1300.

Testing StandardsASTM-E-152,CSFM 43.7 CAN4-S104,NFPA-252,UBC-7-2-97.UL 10C
