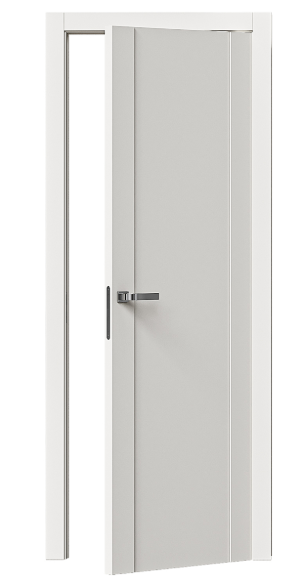

Wooden Door

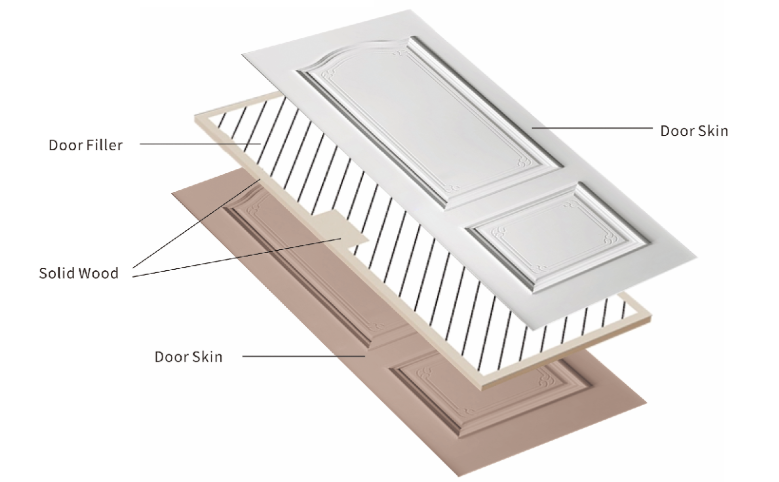

Door Structure
Wooden door section
Wooden Door Technical Specification
Non Fire-rated Door Panel
Core Material
Honeycomb Paper
Solid Wood
Particle Board
Dimension
Width: 1200mm (max)
Height: 2400mm(max)
Thickness:35/40/45mm
Width: 1200mm (max)
Height: 2400mm(max)
Thickness: 35/40/45mm
Width: 1200mm(max)
Height: 2400mm(max)
Thickness: 35/40/45mm
Construction
Face Panel: MDF/Plywood
Rail: Solid Wood
Core: Honeycomb Paper
Face Panel: MDF/Plywood
Rail: Solid Wood
Core: Solid Wood
Face Panel: MDF/Plywood
Rail: Solid Wood
Core: Hollow Particle Board
Finish
Lacquer finish/ Veneer & Lacquer Finish/ Melamine Laminate
Door Frame &Architrave
Core Material
Non Fire Door Frame & Architrave
Frame
Depth: 80-240mm
Thickness:32-45mm
Fire seal: N/A
Material: MDF/plywood +solid wood
Architrave
Type: Flat Shape / L-Shape
Material: WPC/Solid wood/Engineered Wood
Finish
Lacquer finish/Veneer & Lacquer Finish/Melamine Laminate
![]()
